Endopoly Geothermal Pipe

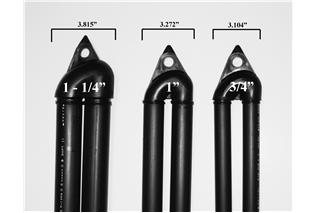

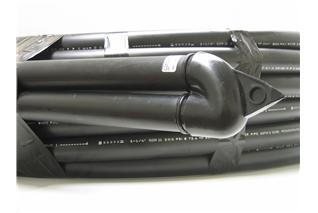

Endot Industries, Inc. produces a complete line of Geothermal Pipe for ground source heat pump solutions.  Endot Geothermal pipe is available in coils, coils with U-Bends installed, reverse U-Bend coils for directional drill installations, stick pipe up to 8" diameter.

5 REASONS TO USE ENDOPOLY GEOTHERMAL PIPE

  1. ENDOPOLY is produced using Premium PE 4710 Polyethylene resin that exceeds the requirements of IGSHPA (International Ground Source Heat Pump Association).  PE4710 pipe has a 25% higher pressure rating than PE3408 pipe.
  2. ENDOPOLY is produced from Virgin High Density Polyethylene Resin with a cell classification of 445574.
  3. ENDOPOLY carries a Lifetime Warranty, which is backed by one of the largest and oldest PE extruders in the nation, 36 years of continuous operation and production.
  4. ENDOPOLY pipe quality is continuously monitored and third party Certified by NSF, the National Sanitation Foundation.
  5. ENDOPOLY is available in standard coils and custom lengths with or without U-bends to meet your needs.



WHY THE RESIN IS IMPORTANT
  • Endot uses Bi-Modal PE 4710 resin that is 25% stronger than the older PE 3408/PE 3608 resins.
  • ASTM D3035-06 PE 4710 resin is rated as SDR 13.5 = 160 PSI & SDR 11 = 200 PSI.

WHY ENDOT IS THE BEST CHOICE FOR GEOTHERMAL PIPE
  • Endot is one of the largest producers of small diameter pipe.
  • Endot has made quality polyethylene pipe continuously for over 35 years.
  • Endot is owned and operated by its founders and they have a proven commitment to making the finest polyethylene products in each industry Endot serves.
  • Endot products are backed by a Lifetime Warranty with a 25 year cost of replacement warranty.
  • Endot has three manufacturing facilities and many distributor locations around the USA assuring a continuous supply of product when and where you need it.

For more information or to obtain a quotation on your Geothermal Pipe requirements please contact us at 1-800-44 ENDOT (800-443-6368) or email your request to info@endot.com.
